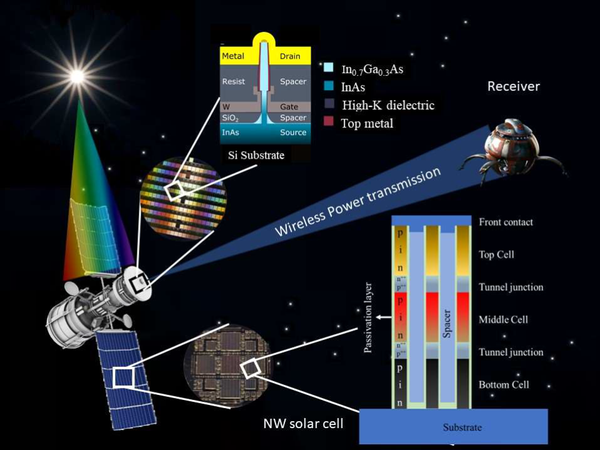

Research


The research is structured into 5 main goals that are addressed in  work packages.



  1. Enhancing the efficiency of radiation-resistant nanowire solar cells.
  2. Scale up wafer size to 100mm^2 and develop modules at a size of 1x1 cm^2.
  3. Improving power conversion efficiency in breakthrough wireless power transmission systems based on III-V nanowire MOSFETs.
  4. Reducing weight and material usage through nanowire peeling and wafer re-use.
  5. LCA: decarbonizations and efficient use of critical raw materials.

Work Packages

WP1: Advancing nanowire solar cell development


Our research leverages EBIC (Electron Beam Induced Current) and OBIC (Optical Beam Induced Current) techniques to target breakthrough solar cell efficiencies of 35%-45%. We are innovating in surface passivation using methods like Atomic Layer Deposition (ALD), with materials such as FeOx, AlOx, and SiOx, to reduce surface recombination and enhance efficiency.


In pursuit of advanced materials, we’re expanding beyond InAsP/InP/GaInP systems to explore GaAs/GaInP. Although heteroepitaxial growth poses challenges, this combination offers advantages in lattice matching and potentially easier surface passivation through selective oxidation of aluminum.


Our studies also compare direct growth on silicon substrates against peel-off and transfer techniques, aiming for optimal performance. Additionally, substrate thinning is being investigated to reduce cell weight, making the technology viable for broader applications.

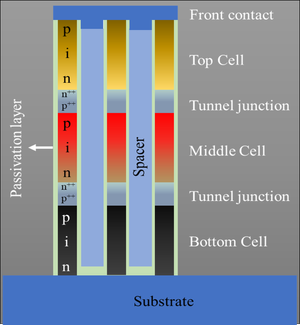

Principle of triple junction nanowires for solar cells

WP3: Up scaling and integration of III-V nanowire solar cells and III-V power transmission nanowire devices on Silicon


Our research is focused on upscaling solar cells to sizes up to 100 mm, with a strong emphasis on optimizing manufacturing processes for minimal defects and high yield. This scaling involves developing advanced surface passivation schemes specifically tailored for large-area devices, which is crucial for maintaining efficiency as cell size increases.


To further enhance performance, we are implementing highly efficient front contact designs for these larger cells. This includes using buried front contacts, minimizing ITO coverage to reduce optical losses, and employing SEM (Scanning Electron Microscopy) for detailed morphology analysis to continually improve contact quality.

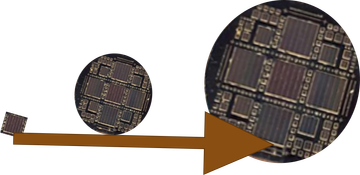

Upscaling to larger wafer sizes

WP2: Explore Wireless microwave transmission-detection with nanowires


We are advancing wireless power transmission through optimized transmitter and detector structures. By balancing transconductance and drive voltage, and employing impedance matching, we aim to maximize power transfer efficiency within the voltage ranges generated by solar harvesting systems.


Our system design addresses critical specifications, including power levels, operating voltage, field plate dimensions, and antenna design (focusing on gain, bandwidth, and loss). Selecting the optimal transmission frequency is central to achieving high performance.


In circuit design, we are developing new process design kits (PDKs) for transmitter and detector circuits. Our device-level optimization targets 100 mm device processing with a focus on minimizing self-heating and ensuring stable temperature performance. Circuit fabrication and characterization can be integrated with photovoltaic systems or function as standalone units.

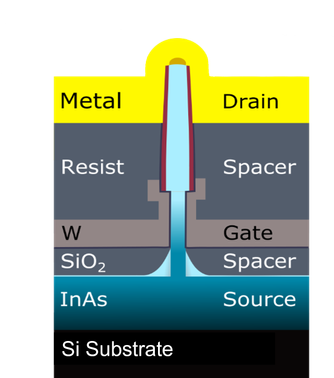

Nanowire MOSFETS

WP4: Testing and characterisation for long term space performance


Our solar cell testing includes both standard and advanced electrical characterization methods. Standard tests cover EQE (External Quantum Efficiency), E-V (Energy-Voltage) analysis, and performance evaluation under AM0 conditions (25°C, 1361 W/m²).


For advanced characterization, we simulate a wide range of space conditions, with irradiances from 1361 W/m² (similar to Earth orbit) down to 15 W/m² (Saturn levels) and temperatures spanning from +100°C to -175°C.


We also conduct rigorous environmental tests, including standard radiation exposure (1 MeV electrons, total dose of 1×1015cm−21 \times 10^{15} \, \text{cm}^{-2}1×1015cm−2), thermal vacuum testing, and stress testing to replicate the harsh conditions encountered before and during launch.

Solar cells in space must withstand low temperatures and high irradiance intensities.

WP5: Life cycle assessment


We conduct an Ex-ante Life Cycle Assessment (LCA) in compliance with ISO
standards 14040:2006 and 14044:2006 to evaluate the environmental impact
of our solar technologies.

Our assessments  focus on estimating decarbonization potential across
both manufacturing and usage phases, as well as strategies for
recovering critical raw materials at the end of the product’s life cycle.


The most exciting prospect of the ZEUS project is the potential to power future space technology with ultra-light, high-efficiency nanowire solar cells engineered for unmatched performance and resilience.


Magnus Borgström


Coordinator
